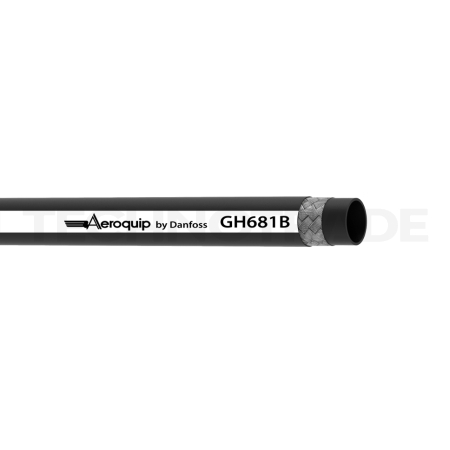

Hydraulic hose Aeroquip GH681
Product ID GH681-24MT46
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- IDGH681-24MT46
- Manufacturer Danfoss
- Inner diameter 38,1 mm
- Outer diameter (max) 48,9 mm
- Maximum operating pressure 52 bar
- Minimum bend radius 250 mm
- Number of steel braids 1
Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
29,38 €
excl. VAT
35,55 € incl. VAT
Danfoss
Need help?
Product description
Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Optionally with Bruiser cover for higher abrasion resistance
Details
| Inner diameter | 38,1 mm |
| Outer diameter (max) | 48,9 mm |
| Maximum operating pressure | 52 bar |
| Minimum bend radius | 250 mm |
| Number of steel braids | 1 |
| Operating temperature | -46°C to +127°C |
| Weight | 1,19 kg/m |
