Hydraulic hose Aeroquip GH506

Product ID GH506-12
Image for illustration purposes only

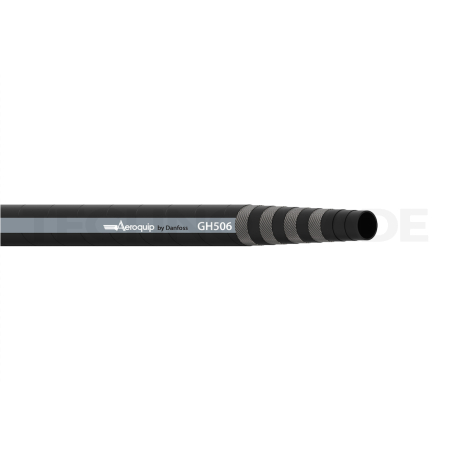

Hydraulic hose Aeroquip GH506
  • IDGH506-12
  • Manufacturer Danfoss
  • Maximum operating pressure 420 bar
  • Inner diameter 19 mm
  • Outer diameter (max) 33 mm
  • Number of steel braids 4
  • Minimum bend radius 280 mm
Premium four wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH506 designed for use in high pressure hydraulic systems. The price is per 1 meter of hose.
Product details
In stock Shipping next working day from our EU distribution hub European Union
32,32 € excl. VAT
m
Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Premium four wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH506 designed for use in high pressure hydraulic systems. The price is per 1 meter of hose.

The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.

MAIN FEATURES

  • High-quality synthetic hydraulic hose
  • Designed for demanding operating conditions
  • High abrasion and temperature resistance
  • 1 million impulse cycle performance
  • Optionally with Bruiser cover for higher abrasion resistance

Details

Maximum operating pressure 420 bar
Inner diameter 19 mm
Outer diameter (max) 33 mm
Number of steel braids 4
Minimum bend radius 280 mm
Operating temperature -40°C to +100°C
Weight 1,49 kg/m

Documents

Hydraulic hose Aeroquip GH506
aeroquip-winner-brochure.pdf
.pdf | 3.306 MB
