• IDGH681-4
  • Manufacturer Danfoss
  • Maximum operating pressure 255 bar
  • Inner diameter 6,4 mm
  • Outer diameter (max) 13,5 mm
  • Number of steel braids 1
  • Minimum bend radius 50 mm

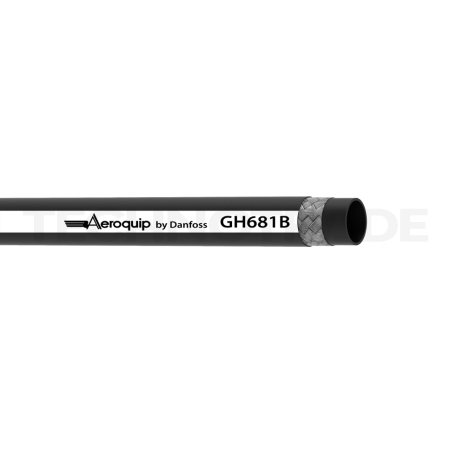

Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock Shipping next working day from our EU distribution hub European Union
5,67 € excl. VAT 6,87 € incl. VAT
m
Need help?

Product description

Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.

The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.

MAIN FEATURES

  • High-quality synthetic hydraulic hose
  • Designed for demanding operating conditions
  • High abrasion and temperature resistance
  • 1 million impulse cycle performance
  • Optionally with Bruiser cover for higher abrasion resistance

Details

Inner diameter 6,4 mm
Outer diameter (max) 13,5 mm
Maximum operating pressure 255 bar
Minimum bend radius 50 mm
Number of steel braids 1
Operating temperature -46°C to +127°C
Weight 0,21 kg/m
