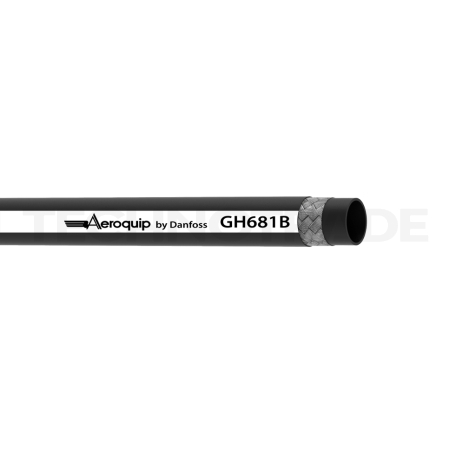

Hydraulic hose Aeroquip GH681
Product ID GH681-6
Image for illustration purposes only
- IDGH681-6
- Manufacturer Danfoss
- Maximum operating pressure 235 bar
- Inner diameter 9,5 mm
- Outer diameter (max) 16,9 mm
- Number of steel braids 1
- Minimum bend radius 63 mm
Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
6,68 €
excl. VAT
8,08 € incl. VAT
Danfoss
Need help?
Product description
Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Optionally with Bruiser cover for higher abrasion resistance
Details
| Inner diameter | 9,5 mm |
| Outer diameter (max) | 16,9 mm |
| Maximum operating pressure | 235 bar |
| Minimum bend radius | 63 mm |
| Number of steel braids | 1 |
| Operating temperature | -46°C to +127°C |
| Weight | 0,31 kg/m |
