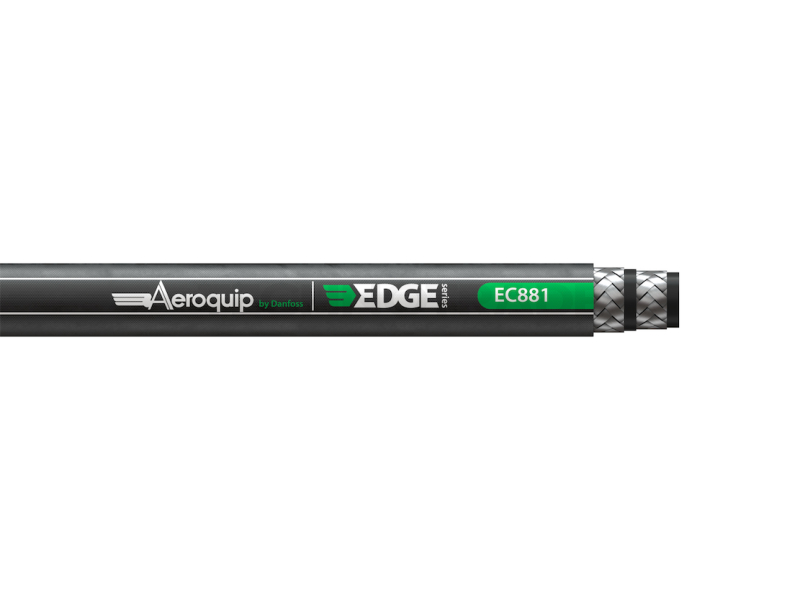

Hydraulic hose Aeroquip Dynamax EC881 DN25
Product ID EC881-16MT50
Image for illustration purposes only
- IDEC881-16MT50
- Manufacturer Danfoss
- Inner diameter 25,4 mm
- Outer diameter (max) 36,6 mm
- Maximum operating pressure 280 bar
- Minimum bend radius 150 mm
- Number of steel braids 2
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
12,85 €
excl. VAT
15,55 € incl. VAT
Danfoss
Need help?
Product description
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Optionally with Bruiser cover for higher abrasion resistance
Details
| Inner diameter | 25,4 mm |
| Outer diameter (max) | 36,6 mm |
| Maximum operating pressure | 280 bar |
| Minimum bend radius | 150 mm |
| Number of steel braids | 2 |
| Operating temperature | -46°C to +127°C |
| Weight | 1,47 kg/m |
