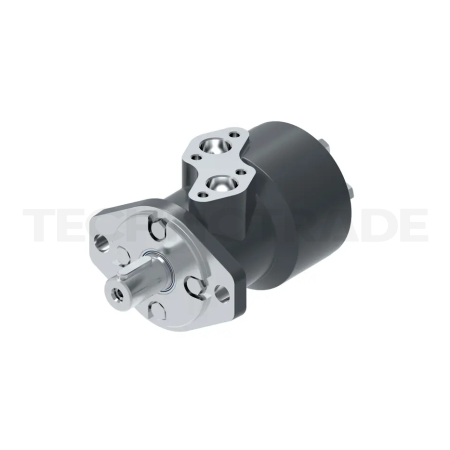

Orbital motor XLH 485
Product ID 016-0553-003
Image for illustration purposes only
- ID016-0553-003
- MMCMCH485AA10AA110020A000C00C
- Manufacturer Danfoss
- Displacement cm³
- Shaft style Straight
- Shaft size Dia. 25 mm - M8 tap
- Mounting flange 2 Bolt - A
High-quality Danfoss XLH orbital hydraulic motor (equivalent to the original OMP / OMP X series) suitable for use in both open and closed hydraulic circuits.
On request
Latest estimated delivery date: 22.11.2026
218,61 €
excl. VAT
264,52 € incl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
High-quality Danfoss XLH orbital hydraulic motor (equivalent to the original OMP / OMP X series) suitable for use in both open and closed hydraulic circuits.
Details
| Displacement | cm³ |
| Shaft style | Straight |
| Shaft size | Dia. 25 mm - M8 tap |
| Mounting flange | 2 Bolt - A |
| Basic motor | XLH |
| Series | Xcel |
| Mounting thread dimension | Pilot dia. 82,6 x 5 mm - B.C. dia. 106,4 mm - Dia. 13,5 mm |
| Port style | Side ported - offset |
| Port dimension | G 1/2 |
| Drain port dimension | G 1/4 |
| Shaft seal | NBR - High pressure |
| Painted | Black |
| Weight (brutto) | 8000 g |
