• IDEHW194-08BU
  • Manufacturer Danfoss
  • Inner diameter 12,7 mm
  • Color
  • Size 8

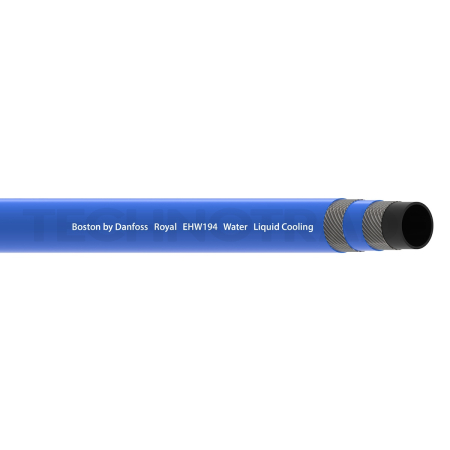

Danfoss EHW194 data center liquid cooling hoses are made of peroxide vulcanized synthetic EPDM rubber with a double-layer textile braid for high resistance and long life, are Helium tested and are 100% safe. The outer jacket is made of synthetic EPDM rubber.
On request Latest estimated delivery date: 15.1.2027
13,42 € excl. VAT 16,23 € incl. VAT
m
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

Danfoss EHW194 data center liquid cooling hoses are made of peroxide vulcanized synthetic EPDM rubber with a double-layer textile braid for high resistance and long life, are Helium tested and are 100% safe. The outer jacket is made of synthetic EPDM rubber.

Certifications

  • Meets UL 94 V-0 (flammability)
  • Exceeds ASTM E84 Class 1/A

Operating Temperature

  • -40°C to +140°C

Details

Inner diameter 12,7 mm
Color
Size 8
Outer diameter (max) 22 mm
Minimum bend radius 75 mm
Weight (brutto) 354 g
