• ID151B3109
  • Manufacturer Danfoss
  • Displacement 800 cm³
  • Mounting flange 4 Bolt - Square
  • Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm
  • Shaft style Splined - 16T
  • Shaft size Dia. 2-1/8" - M12 tap

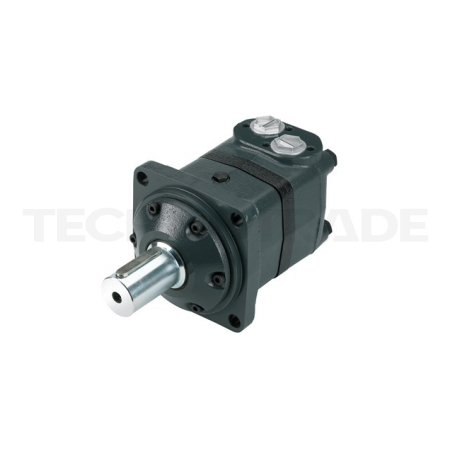

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
On request Farthest delivery date: 15.12.2024
2 435,52 € excl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.

OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.

OMV MAIN FEATURES

  • Displacement 315-800 cm³
  • Max. continuous pressure 240 bar
  • Max. continuous torque 1880 Nm
  • Max. continuous flow 200 l/min
  • Available with speed sensor
  • Available with ATEX certificate

Details

Basic motor OMV
Series O-series
Displacement 800 cm³
Shaft style Splined - 16T
Shaft size Dia. 2-1/8" - M12 tap
Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm
Mounting flange 4 Bolt - Square
Port style Side ported - offset manifold (4 x M12)
Port dimension G 1
Drain port style Standard - bearing housing
Drain port dimension G 1/4
Dust seal Standard
Shaft seal NBR - High pressure
Seal kit product ID 151B0129
Front bearing Tapered roller bearing
Rear bearing Tapered roller bearing
Gear wheel set Standard
Check valve Yes
Weight (brutto) 36500 g
