Orbital motor OMVS 800

Product ID 151B3129
Image for illustration purposes only

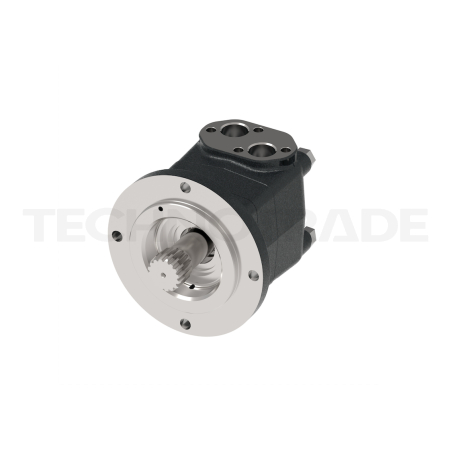

Orbital motor OMVS 800
  • ID151B3129
  • Manufacturer Danfoss
  • Displacement 800 cm³
  • Mounting flange 4 Bolt - Short
  • Mounting thread dimension Pilot dia. 139,9 x 8 mm - B.C. dia. 180 mm - Dia. 14 mm
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
Product details
In stock Shipping next working day from our EU distribution hub European Union
1 671,20 € excl. VAT
pc
Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.

OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.

OMV MAIN FEATURES

  • Displacement 315-800 cm³
  • Max. continuous pressure 240 bar
  • Max. continuous torque 1880 Nm
  • Max. continuous flow 200 l/min
  • Available with speed sensor
  • Available with ATEX certificate

Details

Displacement 800 cm³
Mounting flange 4 Bolt - Short
Mounting thread dimension Pilot dia. 139,9 x 8 mm - B.C. dia. 180 mm - Dia. 14 mm
Basic motor OMVS
Series O-series
Port style Side ported - offset manifold (4 x M12)
Port dimension G 1
Drain port style Standard - mounting flange
Drain port dimension G 1/4
Dust seal Standard
Seal kit product ID 151B0125
Front bearing No bearing
Rear bearing No bearing
Gear wheel set Standard
Check valve Yes
Weight (brutto) 28000 g

Documents

Orbital motor OMVS 800
omt-omv-orbital-motors-technical-information.pdf
.pdf | 4.629 MB
