• IDFD83-2126-32-32
  • Manufacturer Danfoss
  • Coupling size G2-11 BSP
  • Thread type Female
  • Size -32

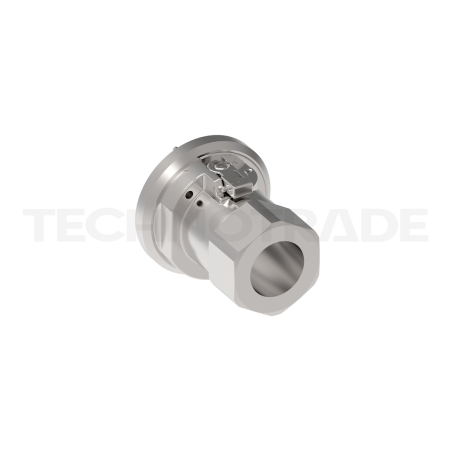

Danfoss Hansen® FD83 quick-disconnet coupling is designed for fluid transfer and electronics cooling applications where full flow, fluid compatibility and safety are key. The FD83 with matching halves includes two locking (locking) features to prevent fluid leakage and provide maximum safety. The valves cannot be opened until both halves of the coupling are connected, and the coupling cannot be disconnected until both valves are closed.
On request Latest estimated delivery date: 15.1.2027
899,69 € excl. VAT 1 088,62 € incl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

Danfoss Hansen® FD83 quick-disconnet coupling is designed for fluid transfer and electronics cooling applications where full flow, fluid compatibility and safety are key. The FD83 with matching halves includes two locking (locking) features to prevent fluid leakage and provide maximum safety. The valves cannot be opened until both halves of the coupling are connected, and the coupling cannot be disconnected until both valves are closed.

Details

Coupling size G2-11 BSP
Thread type Female
Size -32
Weight (brutto) 2300 g
