• ID12001797
  • Manufacturer Danfoss
  • Coupling size 3/4-16 UNF 2A

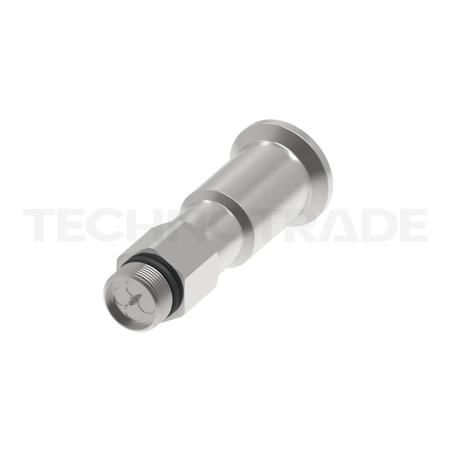

Danfoss BMQC quick-disconnect coupling is specifically designed for data center liquid cooling, enabling secure blind mate connections even in inaccessible areas of server racks. It offers high flow, low pressure drop, minimal risk of leakage and high reliability thanks to stainless steel and double sealing, increasing cooling efficiency and reducing system energy consumption.
On request Latest estimated delivery date: 15.1.2027
109,82 € excl. VAT 132,88 € incl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

Danfoss BMQC quick-disconnect coupling is specifically designed for data center liquid cooling, enabling secure blind mate connections even in inaccessible areas of server racks. It offers high flow, low pressure drop, minimal risk of leakage and high reliability thanks to stainless steel and double sealing, increasing cooling efficiency and reducing system energy consumption.

Details

Coupling size 3/4-16 UNF 2A
Thread type ORB
Weight (brutto) 191 g
