• ID151B3112
  • Manufacturer Danfoss
  • Shaft style Tapered - Cone 1:10
  • Shaft size Dia. 60 mm - M42 x 3 tap
  • Displacement 500 cm³
  • Mounting flange 4 Bolt - Square
  • Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm

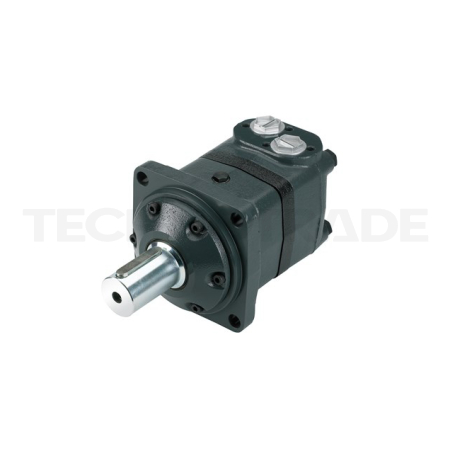

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
In stock Shipping next working day from our EU distribution hub European Union
2 012,40 € excl. VAT
pc
Need help?

Product description

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.

OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.

OMV MAIN FEATURES

  • Displacement 315-800 cm³
  • Max. continuous pressure 240 bar
  • Max. continuous torque 1880 Nm
  • Max. continuous flow 200 l/min
  • Available with speed sensor
  • Available with ATEX certificate

Details

Shaft style Tapered - Cone 1:10
Shaft size Dia. 60 mm - M42 x 3 tap
Displacement 500 cm³
Mounting flange 4 Bolt - Square
Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm
Basic motor OMV
Series O-series
Shaft key B16 x 10 x 32 mm (DIN 6885)
Port style Side ported - offset manifold (4 x M12)
Port dimension G 1
Drain port style Standard - bearing housing
Drain port dimension G 1/4
Dust seal Standard
Shaft seal NBR - High pressure
Seal kit product ID 151B0129
Front bearing Tapered roller bearing
Rear bearing Tapered roller bearing
Gear wheel set Standard
Check valve Yes
Weight (brutto) 33500 g
