Swashplate for S90 pump 100ccm

Product ID 8200232

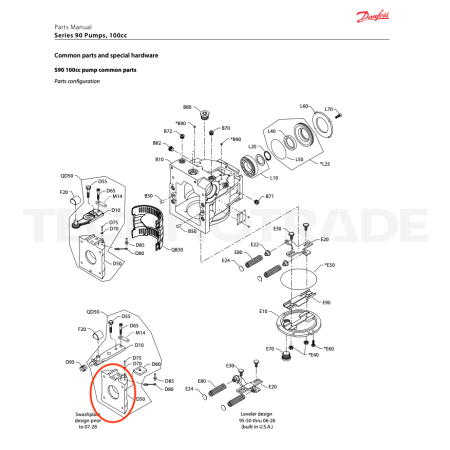

Image for illustration purposes only
Swashplate for S90 pump 100ccm
  • ID8200232
  • Manufacturer Danfoss
  • Compatible with pump Series 90 100ccm
Swashplate. For pumps produced before 07-28. Genuine spare part for Danfoss Series 90 axial piston pumps with displacement of 100 ccm.
Product details
In stock Shipping next working day from our EU distribution hub European Union
676,82 € excl. VAT 818,95 € incl. VAT
pc
Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Swashplate. For pumps produced before 07-28. Genuine spare part for Danfoss Series 90 axial piston pumps with displacement of 100 ccm.

Details

Compatible with pump Series 90 100ccm

Documents

Swashplate for S90 pump 100ccm
s90-pump-100cc-parts-manual.pdf
.pdf | 12.896 MB
