• ID016-0538-003
  • MMCMCH245AA07AA110020A000C00C
  • Manufacturer Danfoss
  • Displacement 240 cm³
  • Shaft style Splined - 6B
  • Shaft size Dia. 1" - M8 tap
  • Mounting flange 2 Bolt - A

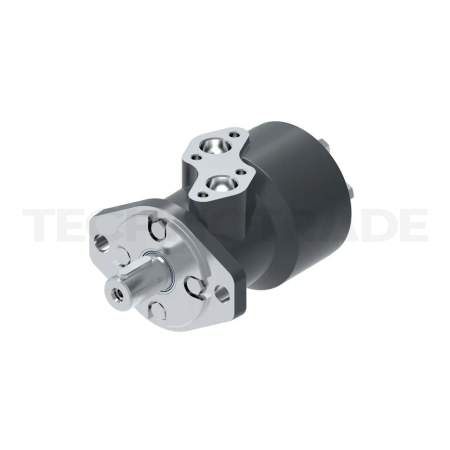

High-quality Danfoss XLH orbital hydraulic motor (equivalent to the original OMP / OMP X series) suitable for use in both open and closed hydraulic circuits.
On request Latest estimated delivery date: 15.1.2027
Alternativy k produktu Orbital motor XLH 245
Orbital motor OMP X 250
Orbital motor OMP X 250
Alternativní produkt, který lze použít jako náhradu za prohlížený produkt.
On request
0,00 € 0,00 € excl. VAT
Orbital motor OMP 250
0,00 € 0,00 € excl. VAT
190,45 € excl. VAT 230,44 € incl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

High-quality Danfoss XLH orbital hydraulic motor (equivalent to the original OMP / OMP X series) suitable for use in both open and closed hydraulic circuits.

Details

Displacement 240 cm³
Shaft style Splined - 6B
Shaft size Dia. 1" - M8 tap
Mounting flange 2 Bolt - A
Basic motor XLH
Series Xcel
Mounting thread dimension Pilot dia. 82,6 x 5 mm - B.C. dia. 106,4 mm - Dia. 13,5 mm
Port style Side ported - offset
Port dimension G 1/2
Drain port dimension G 1/4
Shaft seal NBR - High pressure
Painted Black
Weight (brutto) 7100 g
