• ID629AG00738A
  • Manufacturer Danfoss
  • Displacement cm³
  • Shaft style Splined - 14T
  • Shaft size Dia. 1-1/4" - M8 tap
  • Mounting flange 4 Bolt - Square

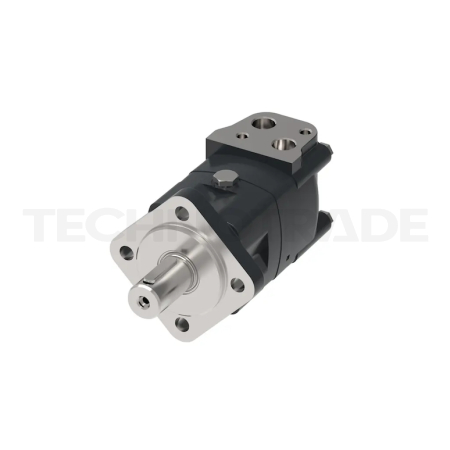

Reliable Danfoss XL2 orbital hydraulic motor (equivalent to the original OMS series) suitable for use in both open and closed hydraulic circuits.
On request Latest estimated delivery date: 15.1.2027
Alternativy k produktu Orbital motor XL2 245
Orbital motor OMS 250
Orbital motor OMS 250
Alternativní produkt, který lze použít jako náhradu za prohlížený produkt.
On request
0,00 € 0,00 € excl. VAT
373,76 € excl. VAT 452,24 € incl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

Reliable Danfoss XL2 orbital hydraulic motor (equivalent to the original OMS series) suitable for use in both open and closed hydraulic circuits.

Details

Displacement cm³
Shaft style Splined - 14T
Shaft size Dia. 1-1/4" - M8 tap
Mounting flange 4 Bolt - Square
Basic motor
Series Xcel
Mounting thread dimension
Port style Side ported - offset
Port dimension G 1/2
Drain port dimension G 1/4
Shaft seal NBR - High pressure
Painted Black
Weight (brutto) 11700 g
