Orbital motor XL2 100

Product ID 629AG00734A

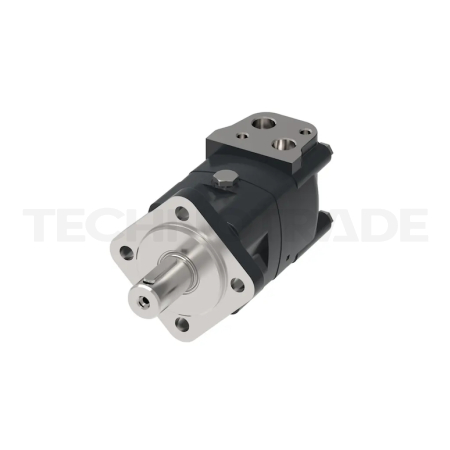

Image for illustration purposes only
Orbital motor XL2 100
  • ID629AG00734A
  • Manufacturer Danfoss
  • Displacement 100 cm³
  • Shaft style Splined - 14T
  • Shaft size Dia. 1-1/4" - M8 tap
  • Mounting flange 4 Bolt - Square
Reliable Danfoss XL2 orbital hydraulic motor (equivalent to the original OMS series) suitable for use in both open and closed hydraulic circuits.
Product details
On request Latest estimated delivery date: 19.11.2026
Alternativy k produktu Orbital motor XL2 100
Orbital motor OMS 100
Orbital motor OMS 100
Alternativní produkt, který lze použít jako náhradu za prohlížený produkt.
On request
0,00 € 0,00 € excl. VAT
359,39 € excl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Reliable Danfoss XL2 orbital hydraulic motor (equivalent to the original OMS series) suitable for use in both open and closed hydraulic circuits.

Details

Displacement 100 cm³
Shaft style Splined - 14T
Shaft size Dia. 1-1/4" - M8 tap
Mounting flange 4 Bolt - Square
Basic motor
Series Xcel
Mounting thread dimension
Port style Side ported - offset
Port dimension G 1/2
Drain port dimension G 1/4
Shaft seal NBR - High pressure
Painted Black
Weight (brutto) 9800 g

Documents

Orbital motor XL2 100
xlh-xls-xl2-4-6-technical-information.pdf
.pdf | 15.81 MB
