CZE
Orbital motor XL2 100
Product ID 629AG00725A

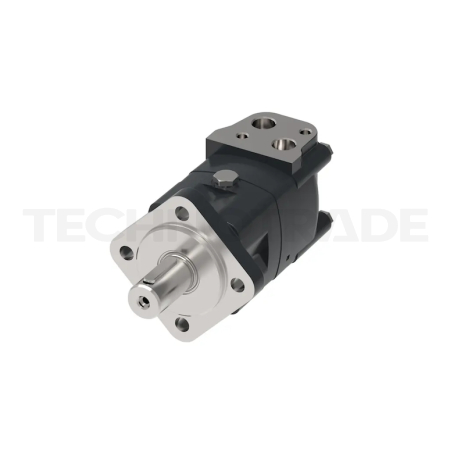

Image for illustration purposes only
- ID629AG00725A
- Manufacturer Danfoss
- Displacement 100 cm³
- Shaft style Tapered - Cone 1:10
- Shaft size Dia. 35 mm - M20 x 1,5 tap
- Mounting flange 4 Bolt - Square
Reliable Danfoss XL2 orbital hydraulic motor (equivalent to the original OMS series) suitable for use in both open and closed hydraulic circuits.
On request
Latest estimated delivery date: 4.12.2026
Alternativy k produktu Orbital motor XL2 100
Orbital motor OMS 100
Alternativní produkt, který lze použít jako náhradu za prohlížený produkt.
On request
0,00 €
0,00 € excl. VAT
358,58 €
excl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
Reliable Danfoss XL2 orbital hydraulic motor (equivalent to the original OMS series) suitable for use in both open and closed hydraulic circuits.
Details
| Displacement | 100 cm³ |
| Shaft style | Tapered - Cone 1:10 |
| Shaft size | Dia. 35 mm - M20 x 1,5 tap |
| Mounting flange | 4 Bolt - Square |
| Basic motor | |
| Series | Xcel |
| Mounting thread dimension | |
| Port style | Side ported - offset |
| Port dimension | G 1/2 |
| Drain port dimension | G 1/4 |
| Shaft seal | NBR - High pressure |
| Painted | Black |
| Weight (brutto) | 10100 g |
