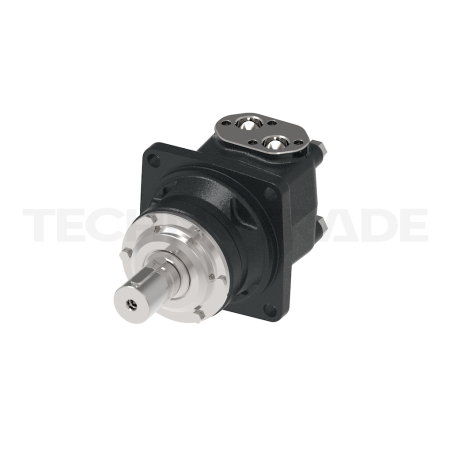

Orbital motor OMVW HD 500
Product ID 151B3157
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- ID151B3157
- Manufacturer Danfoss
- Shaft style Tapered - Cone 1:10
- Shaft size Dia. 60 mm - M42 x 3 tap
- Displacement 500 cm³
- Mounting flange 4 Bolt - Wheel
- Mounting thread dimension Pilot dia. 180 x 10,6 mm / 194 x 3,4 mm - B.C. dia. 224 mm - Dia. 18 mm
Robust OMVW HD orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
In stock
Shipping next working day from our EU distribution hub
1 573,53 €
excl. VAT
Danfoss
Need help?
Product description
Robust OMVW HD orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.
OMV MAIN FEATURES
- Displacement 315-800 cm³
- Max. continuous pressure 240 bar
- Max. continuous torque 1880 Nm
- Max. continuous flow 200 l/min
- Available with speed sensor
- Available with ATEX certificate
Details
| Shaft style | Tapered - Cone 1:10 |
| Shaft size | Dia. 60 mm - M42 x 3 tap |
| Displacement | 500 cm³ |
| Mounting flange | 4 Bolt - Wheel |
| Mounting thread dimension | Pilot dia. 180 x 10,6 mm / 194 x 3,4 mm - B.C. dia. 224 mm - Dia. 18 mm |
| Basic motor | OMVW HD |
| Series | O-series |
| Shaft key | B16 x 10 x 32 mm (DIN 6885) |
| Port style | Side ported - offset manifold (4 x M12) |
| Port dimension | G 1 |
| Drain port dimension | G 1/4 |
| Dust seal | Standard |
| Shaft seal | NBR - Standard |
| Seal kit product ID | 151B0162 |
| Front bearing | Tapered roller bearing |
| Rear bearing | Tapered roller bearing |
| Gear wheel set | Standard |
| Check valve | No |
