Orbital motor OMTW HD 500
Product ID 151B3511

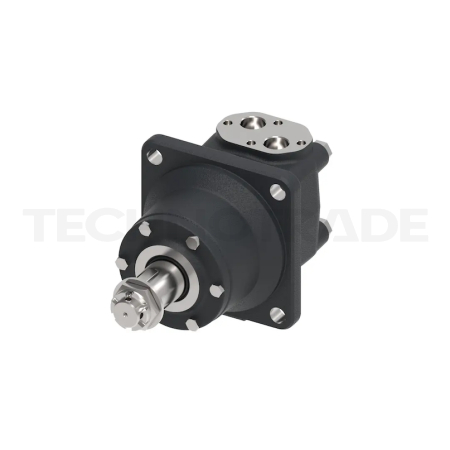

Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- ID151B3511
- Manufacturer Danfoss
- Shaft style Tapered - Cone 1:10
- Shaft size Dia. 45 mm - M30 x 2 tap
- Displacement 500 cm³
Robust OMTW orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
In stock
Shipping next working day from our EU distribution hub
1 368,78 €
excl. VAT
1 656,22 € incl. VAT
Danfoss
Need help?
Product description
Robust OMTW orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system. Reliable motor designed for particularly rough operating conditions.
OMT orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.
OMT MAIN FEATURES
- Displacement 130-500 cm³
- Max. continuous pressure 200 bar
- Max. continuous torque 1220 Nm
- Max. continuous flow 125 l/min
- Available with speed sensor
- Available with ATEX certificate
Details
| Shaft style | Tapered - Cone 1:10 |
| Shaft size | Dia. 45 mm - M30 x 2 tap |
| Displacement | 500 cm³ |
| Basic motor | OMTW |
| Series | O-series |
| Painted | Black |
