Orbital motor OMVW 315

Product ID 11053915
Image for illustration purposes only

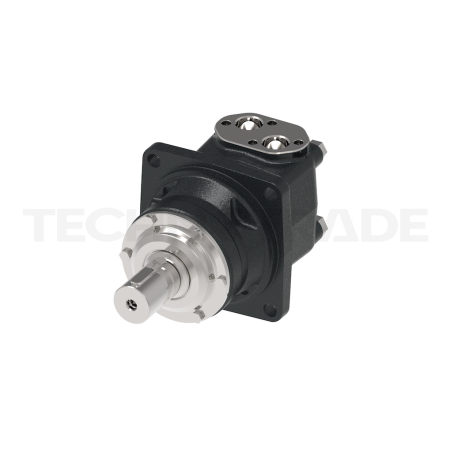

Orbital motor OMVW 315
  • ID11053915
  • Manufacturer Danfoss
  • Displacement 315 cm³
  • Mounting flange 4 Bolt - Wheel
  • Mounting thread dimension Pilot dia. 180 x 10,6 mm / 194 x 3,4 mm - B.C. dia. 224 mm - Dia. 18 mm
  • Shaft style Tapered - Cone 1:10
  • Shaft size Dia. 60 mm - M42 x 3 tap
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
Product details
On request Farthest delivery date: 24.2.2025
1 474,81 € excl. VAT 1 784,52 € incl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.

OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.

OMV MAIN FEATURES

  • Displacement 315-800 cm³
  • Max. continuous pressure 240 bar
  • Max. continuous torque 1880 Nm
  • Max. continuous flow 200 l/min
  • Available with speed sensor
  • Available with ATEX certificate

Details

Basic motor OMVW
Series O-series
Displacement 315 cm³
Shaft style Tapered - Cone 1:10
Shaft size Dia. 60 mm - M42 x 3 tap
Mounting thread dimension Pilot dia. 180 x 10,6 mm / 194 x 3,4 mm - B.C. dia. 224 mm - Dia. 18 mm
Mounting flange 4 Bolt - Wheel
Shaft key B16 x 10 x 32 mm (DIN 6885)
Port style Side ported - offset manifold (4 x M12)
Port dimension G 1
Drain port style Standard - bearing housing
Drain port dimension G 1/4
Dust seal Standard
Shaft seal NBR - Standard
Seal kit product ID 151B0129
Front bearing Tapered roller bearing
Rear bearing Tapered roller bearing
Gear wheel set Standard
Check valve Yes
Painted Black
Weight (brutto) 34000 g
