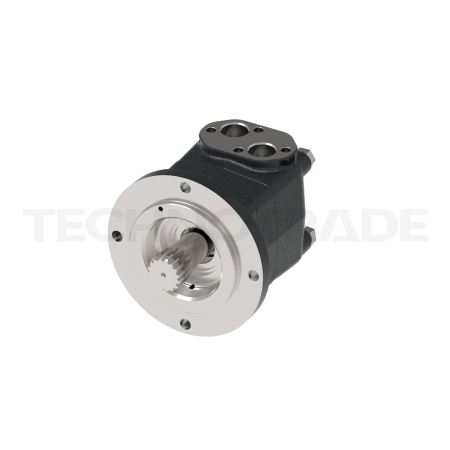

Orbital motor OMVS 400
Product ID 11229363
Image for illustration purposes only
- ID11229363
- Manufacturer Danfoss
- Displacement 400 cm³
- Mounting flange 4 Bolt - Short
- Mounting thread dimension Pilot dia. 139,9 x 8 mm - B.C. dia. 180 mm - Dia. 14 mm
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
On request
Farthest delivery date: 11.12.2024
1 185,77 €
excl. VAT
1 434,78 € incl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.
OMV MAIN FEATURES
- Displacement 315-800 cm³
- Max. continuous pressure 240 bar
- Max. continuous torque 1880 Nm
- Max. continuous flow 200 l/min
- Available with speed sensor
- Available with ATEX certificate
Details
| Basic motor | OMVS |
| Series | O-series |
| Displacement | 400 cm³ |
| Mounting thread dimension | Pilot dia. 139,9 x 8 mm - B.C. dia. 180 mm - Dia. 14 mm |
| Mounting flange | 4 Bolt - Short |
| Port style | Side ported - offset manifold (4 x M12) |
| Port dimension | G 1 |
| Drain port style | Standard - mounting flange |
| Drain port dimension | G 1/4 |
| Dust seal | Standard |
| Seal kit product ID | 151B0125 |
| Front bearing | No bearing |
| Rear bearing | No bearing |
| Gear wheel set | Standard |
| Check valve | Yes |
| Painted | Black |
| Weight (brutto) | 23500 g |
