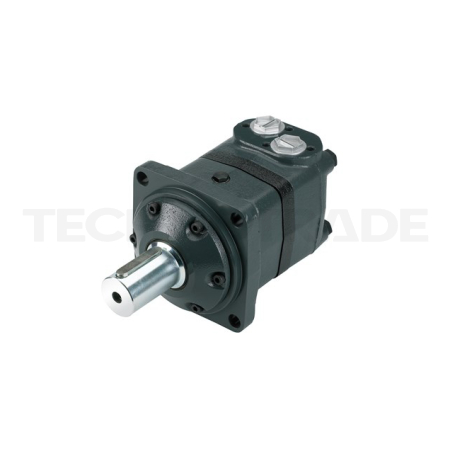

Orbital motor OMV HD 400
Product ID 151B3180
Image for illustration purposes only
- ID151B3180
- Manufacturer Danfoss
- Shaft style Straight
- Shaft size Dia. 50 mm - M12 tap
- Displacement 400 cm³
- Mounting flange 4 Bolt - Square
- Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
On request
Latest estimated delivery date: 4.12.2026
1 481,95 €
excl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.
OMV MAIN FEATURES
- Displacement 315-800 cm³
- Max. continuous pressure 240 bar
- Max. continuous torque 1880 Nm
- Max. continuous flow 200 l/min
- Available with speed sensor
- Available with ATEX certificate
Details
| Shaft style | Straight |
| Shaft size | Dia. 50 mm - M12 tap |
| Displacement | 400 cm³ |
| Mounting flange | 4 Bolt - Square |
| Mounting thread dimension | Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm |
| Basic motor | OMV HD |
| Series | O-series |
| Shaft key | A14 x 9 x 70 mm (DIN 6885) |
| Port style | Side ported - offset manifold (4 x M12) |
| Port dimension | G 1 |
| Drain port style | Standard - bearing housing |
| Drain port dimension | G 1/4 |
| Shaft seal | NBR - Low pressure |
| Seal kit product ID | 151B0162 |
| Front bearing | Tapered roller bearing |
| Rear bearing | Tapered roller bearing |
| Gear wheel set | Standard |
| Check valve | No |
| Special features internal 1 | Shaft seal 72 NBR |
| Weight (brutto) | 33760 g |
