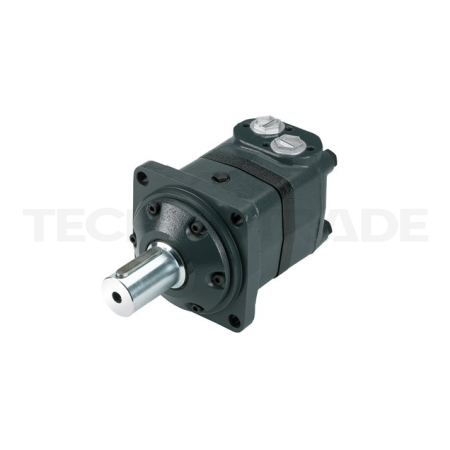

Orbital motor OMV 630
Product ID 11177246
Image for illustration purposes only
- ID11177246
- Manufacturer Danfoss
- Shaft style Straight
- Shaft size Dia. 2-1/4" - 3/8-16 UNC tap
- Displacement 630 cm³
- Mounting flange 4 Bolt - C
- Mounting thread dimension Pilot dia. 127 x 13,5 mm - B.C. dia. 161,9 mm - Dia. 17,5 mm
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
On request
Latest estimated delivery date: 4.12.2026
2 382,20 €
excl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.
OMV MAIN FEATURES
- Displacement 315-800 cm³
- Max. continuous pressure 240 bar
- Max. continuous torque 1880 Nm
- Max. continuous flow 200 l/min
- Available with speed sensor
- Available with ATEX certificate
Details
| Shaft style | Straight |
| Shaft size | Dia. 2-1/4" - 3/8-16 UNC tap |
| Displacement | 630 cm³ |
| Mounting flange | 4 Bolt - C |
| Mounting thread dimension | Pilot dia. 127 x 13,5 mm - B.C. dia. 161,9 mm - Dia. 17,5 mm |
| Basic motor | OMV |
| Series | O-series |
| Shaft key | 1/2 x 1/2 x 2-1/4" (B.S. 46) |
| Port style | Side ported - offset |
| Port dimension | 1 5/16 - 12 UN |
| Drain port style | Standard - bearing housing |
| Drain port dimension | 9/16 - 18 UNF |
| Dust seal | Standard |
| Shaft seal | NBR - High pressure |
| Seal kit product ID | 151B0129 |
| Front bearing | Tapered roller bearing |
| Rear bearing | Tapered roller bearing |
| Gear wheel set | Standard |
| Check valve | Yes |
| Special features external 1 | Output shaft - shorter |
| Weight (brutto) | 33000 g |
