Orbital motor OMV 315

Product ID 151B3287

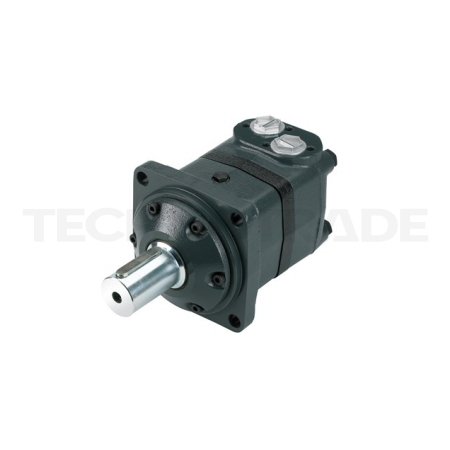

Image for illustration purposes only
Orbital motor OMV 315
  • ID151B3287
  • Manufacturer Danfoss
  • Displacement 315 cm³
  • Shaft style Straight
  • Shaft size Dia. 50 mm - M12 tap
  • Mounting flange 4 Bolt - Square
  • Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
Product details
In stock Shipping next working day from our EU distribution hub European Union
1 694,63 € excl. VAT 2 050,50 € incl. VAT
pc
Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.

OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.

OMV MAIN FEATURES

  • Displacement 315-800 cm³
  • Max. continuous pressure 240 bar
  • Max. continuous torque 1880 Nm
  • Max. continuous flow 200 l/min
  • Available with speed sensor
  • Available with ATEX certificate

Details

Displacement 315 cm³
Shaft style Straight
Shaft size Dia. 50 mm - M12 tap
Mounting flange 4 Bolt - Square
Mounting thread dimension Pilot dia. 160 x 11 mm - B.C. dia. 200 mm - Dia. 18 mm
Basic motor OMV
Series O-series
Shaft key A14 x 9 x 70 mm (DIN 6885)
Port style Side ported - offset manifold (4 x M12)
Port dimension G 1
Drain port style Standard - bearing housing
Drain port dimension G 1/4
Dust seal Standard
Shaft seal NBR - High pressure
Seal kit product ID 151B0129
Front bearing Tapered roller bearing
Rear bearing Tapered roller bearing
Gear wheel set Standard
Check valve Yes
Weight (brutto) 31800 g

Documents

Orbital motor OMV 315
omt-omv-orbital-motors-technical-information.pdf
.pdf | 4.629 MB
