• ID151B2183
  • Manufacturer Danfoss
  • Shaft style Straight
  • Shaft size Dia. 2-1/4" - 1/2-20 UNF tap
  • Displacement 315 cm³
  • Mounting flange 4 Bolt - C
  • Mounting thread dimension Pilot dia. 127 x 13,5 mm - B.C. dia. 161,9 mm - Dia. 17,5 mm

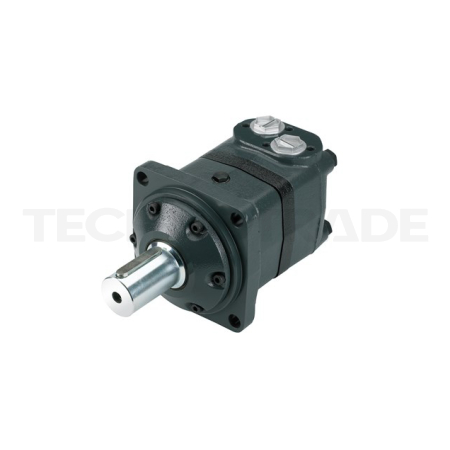

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
On request Latest estimated delivery date: 15.1.2027
1 819,76 € excl. VAT 2 201,91 € incl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?

Product description

Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.

OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.

OMV MAIN FEATURES

  • Displacement 315-800 cm³
  • Max. continuous pressure 240 bar
  • Max. continuous torque 1880 Nm
  • Max. continuous flow 200 l/min
  • Available with speed sensor
  • Available with ATEX certificate

Details

Shaft style Straight
Shaft size Dia. 2-1/4" - 1/2-20 UNF tap
Displacement 315 cm³
Mounting flange 4 Bolt - C
Mounting thread dimension Pilot dia. 127 x 13,5 mm - B.C. dia. 161,9 mm - Dia. 17,5 mm
Basic motor OMV
Series O-series
Shaft key 1/2 x 1/2 x 2-1/4" (B.S. 46)
Port style Side ported - offset
Port dimension 1 5/16 - 12 UN
Drain port style Standard - bearing housing
Drain port dimension 9/16 - 18 UNF
Dust seal Standard
Shaft seal NBR - High pressure
Seal kit product ID 151B0129
Front bearing Tapered roller bearing
Rear bearing Tapered roller bearing
Gear wheel set Standard
Check valve Yes
Weight (brutto) 30980 g
