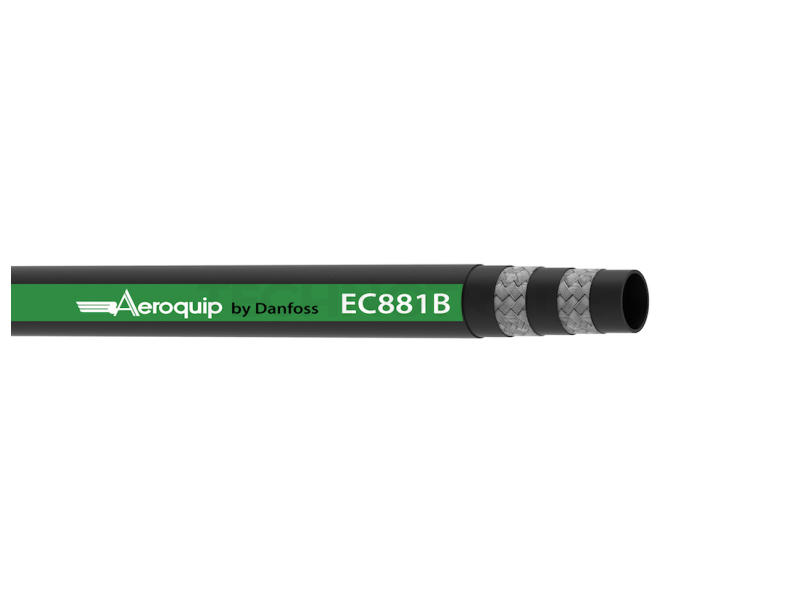

Hydraulic hose Aeroquip Dynamax EC881B DN25
Product ID EC881B-16MT50
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- IDEC881B-16MT50
- Manufacturer Danfoss
- Inner diameter 25,4 mm
- Outer diameter (max) 34,6 mm
- Maximum operating pressure 280 bar
- Minimum bend radius 150 mm
- Number of steel braids 2
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881B with Bruiser® abrasion resistant cover designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
16,95 €
excl. VAT
20,51 € incl. VAT
Danfoss
Need help?
Product description
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881B with Bruiser® abrasion resistant cover designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Bruiser® cover for higher abrasion resistance
Details
| Inner diameter | 25,4 mm |
| Outer diameter (max) | 34,6 mm |
| Maximum operating pressure | 280 bar |
| Minimum bend radius | 150 mm |
| Number of steel braids | 2 |
| Operating temperature | -40°C to +126°C |
| Weight | 1,43 kg/m |
