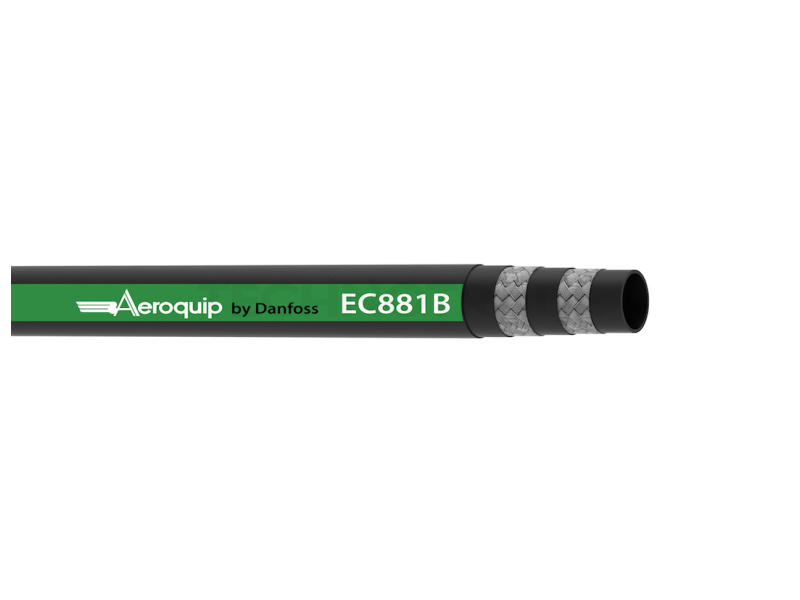

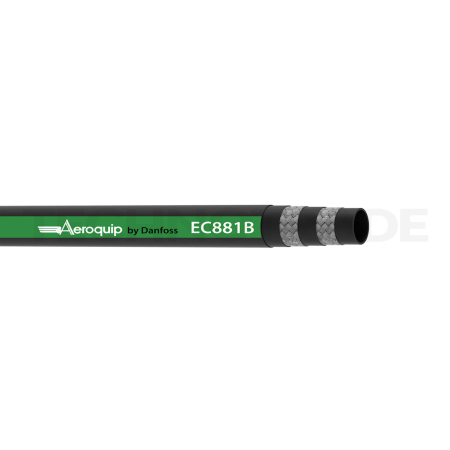

Hydraulic hose Aeroquip Dynamax EC881B DN20
Product ID EC881B-12MT50
Image for illustration purposes only
- IDEC881B-12MT50
- Manufacturer Danfoss
- Inner diameter 19 mm
- Outer diameter (max) 27,9 mm
- Maximum operating pressure 330 bar
- Minimum bend radius 80 mm
- Number of steel braids 2
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881B with Bruiser® abrasion resistant cover designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
10,67 €
excl. VAT
Danfoss
Need help?
Product description
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881B with Bruiser® abrasion resistant cover designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Bruiser® cover for higher abrasion resistance
Details
| Inner diameter | 19 mm |
| Outer diameter (max) | 27,9 mm |
| Maximum operating pressure | 330 bar |
| Minimum bend radius | 80 mm |
| Number of steel braids | 2 |
| Operating temperature | -40°C to +126°C |
| Weight | 1,04 kg/m |
