Hadice EHW194 DN12.7 red

Product ID EHW194-08RD

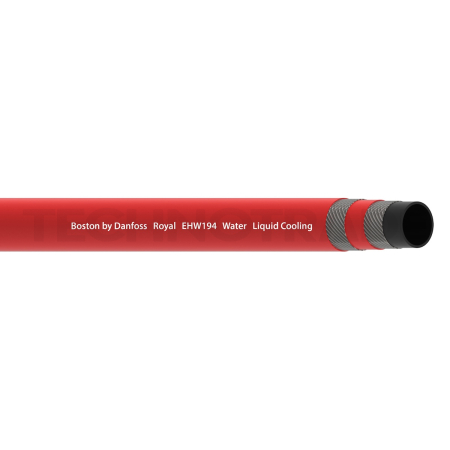

Image for illustration purposes only
Hadice EHW194 DN12.7 red
  • IDEHW194-08RD
  • Manufacturer Danfoss
  • Inner diameter 12,7 mm
  • Color
  • Size 8
Danfoss EHW194 data center liquid cooling hoses are made of peroxide vulcanized synthetic EPDM rubber with a double-layer textile braid for high resistance and long life, are Helium tested and are 100% safe. The outer jacket is made of synthetic EPDM rubber.
Product details
On request Latest estimated delivery date: 19.11.2026
13,42 € excl. VAT
m
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

Danfoss EHW194 data center liquid cooling hoses are made of peroxide vulcanized synthetic EPDM rubber with a double-layer textile braid for high resistance and long life, are Helium tested and are 100% safe. The outer jacket is made of synthetic EPDM rubber.

Certifications

  • Meets UL 94 V-0 (flammability)
  • Exceeds ASTM E84 Class 1/A

Operating Temperature

  • -40°C to +140°C

Details

Inner diameter 12,7 mm
Color
Size 8
Outer diameter (max) 22 mm
Minimum bend radius 75 mm
Weight (brutto) 354 g

Documents

Hadice EHW194 DN12.7 red
danfoss-ehw194-fact-sheet.pdf
.pdf | 0.274 MB
