iC2-30 1~ 208–240 V AC 6.8 A, 1.5 kW with filter
Product ID 132L6112

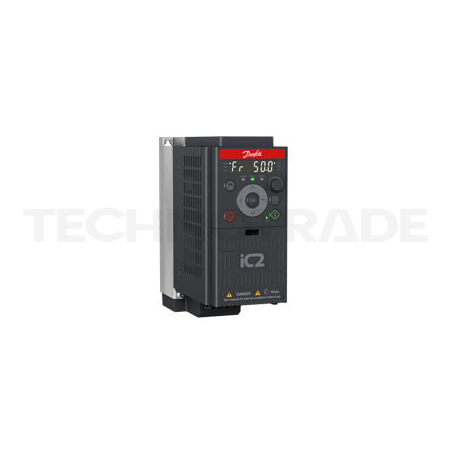

Image for illustration purposes only
- ID132L6112
- MMCIC2-30FA1N02-06A8E20F0+ACXX
- Manufacturer Danfoss
- Nominal power 1,5 kW
- Supply voltage 208–240 V AC
- Nominal current 6,8 A
- Number of phases 1~
Danfoss iC2-Micro is a general-purpose drive that is suitable for a wide and varied range of industrial and HVAC applications. iC2-Micro performs with unmatched reliability even in complex applications. It offers user-friendliness, condensed functionality, and easy commissioning, all in a powerful compact package.
On request
Latest estimated delivery date: 19.11.2026
306,09 €
excl. VAT
370,37 € incl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Old product versions
This product is no longer available. It has been replaced by a new version
, which is its fully adequate replacement with identical parameters. Therefore, it is possible to replace the original product with the new one.
Need help?
Product description
Danfoss iC2-Micro is a general-purpose drive that is suitable for a wide and varied range of industrial and HVAC applications. iC2-Micro performs with unmatched reliability even in complex applications. It offers user-friendliness, condensed functionality, and easy commissioning, all in a powerful compact package.
MAIN FEATURES
- Fast and accurate installation with spring type I/O terminals for minimal external wiring.
- Fast commissioning thanks to application wizards and online/offline PC configuration tool.
- High reliability.
- Cost-effective and space-efficient investment with less wiring, side-by-side mounting and compact footprint.
- Compatible with all typical motor technologies.
- Supported by the powerful MyDrive® Suite digital tools.
- Optional external control panel provides extra features to ease commissioning, such as parameter copy and download.
Details
| Nominal power | 1,5 kW |
| Supply voltage | 208–240 V AC |
| Nominal current | 6,8 A |
| Number of phases | 1~ |
| Model series | iC2-Micro |
| Brake chopper | No |
| Digital inputs | 5 |
| Digital outputs | 1 |
| Analog inputs | 2 |
| Analog outputs | 1 |
| Relay outputs | 1 |
| EMC filter | C1 |
| Enclosure size | MA02c |
| Dimensions | 176mm x 75mm x 157mm |
| IP rating | IP20 |
| Weight (brutto) | 1275 g |
