FC51 1~200–240 V AC 6.8 A, 1.5 kW

Name: FC51 1~200–240 V AC 6.8 A, 1.5 kW
Brand: Danfoss
SKU: 132F0005
Availability: OutOfStock

Product ID 132F0005

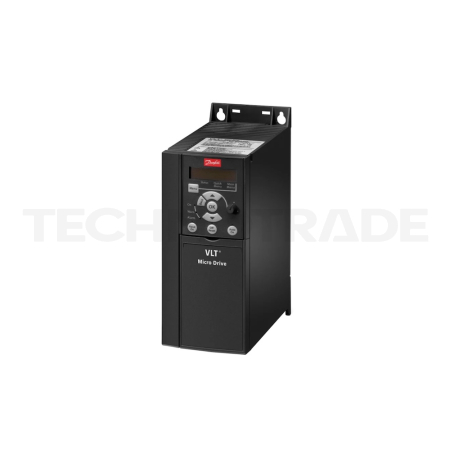

Image for illustration purposes only

Replaced by

ID132F0005
MMCFC-051P1K5S2E20H3BXCXXXSXXX
Manufacturer Danfoss
Nominal power 1,5 kW
Nominal current 6,8 A
Supply voltage 200–240 V AC
Number of phases 1~
Nahrazeno produktem 132L6112

Product discontinued – replacement available

Replacement for FC51 1~200–240 V AC 6.8 A, 1.5 kW

iC2-30 1~ 208–240 V AC 6.8 A, 1.5 kW with filter Product ID: 132L6112

On request

306,09 € excl. VAT

This product is a fully adequate replacement of the discontinued product. It has identical parameters, which means that these products are interchangeable.

Need help?

Call us

+420 739 290 046

Chat with us

E-mail us

Product description

A compact, robust drive designed for controlling AC motors in a wide range of applications, featuring a cost-effective design (allows side-by-side mounting), high reliability even in harsh conditions (thanks to painted PCBs) and easy installation.

It offers powerful control, built-in RFI filters and intelligent cooling to reduce consumption and extend service life.

This product is no longer manufactured and has been replaced by a model from the newer iC2-Micro series. Please select a related product that is a full replacement for this drive.

Details

Nominal power	1,5 kW
Nominal current	6,8 A
Supply voltage	200–240 V AC
Number of phases	1~
Model series	VLT® Micro Drive FC 51
Brake chopper	Yes
Digital inputs	5
Digital outputs	1
Analog inputs	2
Analog outputs	1
Relay outputs	1
EMC filter	A1/B red. cable length
Enclosure size	M1
Dimensions	150mm x 70mm x 148mm
IP rating	IP20
