FC51 3~380–480 V AC 37.0 A, 18.5 kW
Product ID 132F0060

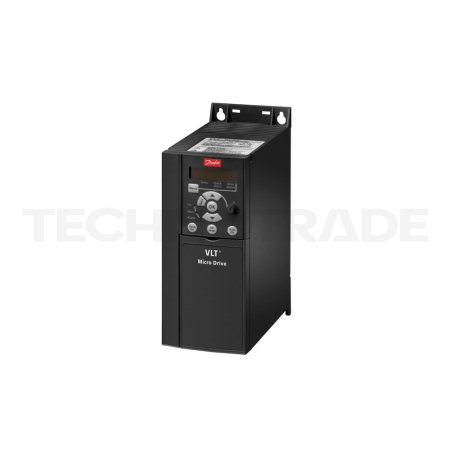

Image for illustration purposes only
Product discontinued – replacement available
Replacement for FC51 3~380–480 V AC 37.0 A, 18.5 kW
This product is a fully adequate replacement of the discontinued product.
It has identical parameters, which means that these products are interchangeable.
Need help?
Product description
A compact, robust drive designed for controlling AC motors in a wide range of applications, featuring a cost-effective design (allows side-by-side mounting), high reliability even in harsh conditions (thanks to painted PCBs) and easy installation.
It offers powerful control, built-in RFI filters and intelligent cooling to reduce consumption and extend service life.
This product is no longer manufactured and has been replaced by a model from the newer iC2-Micro series. Please select a related product that is a full replacement for this drive.
Details
| Nominal power | 18,5 kW |
| Nominal current | 37 A |
| Supply voltage | 380-480 V AC |
| Number of phases | 3~ |
| Model series | VLT® Micro Drive FC 51 |
| Brake chopper | Yes |
| Digital inputs | 5 |
| Digital outputs | 1 |
| Analog inputs | 2 |
| Analog outputs | 1 |
| Relay outputs | 1 |
| EMC filter | A1/B red. cable length |
| Enclosure size | M5 |
| Dimensions | 335mm x 165mm x 248mm |
| IP rating | IP20 |
