• ID11313926
  • Manufacturer Danfoss
  • Input signal ON-OFF
  • Connector type Deutsch
  • Voltage 24 V
  • Function ON-OFF
  • PVG type PVG 16

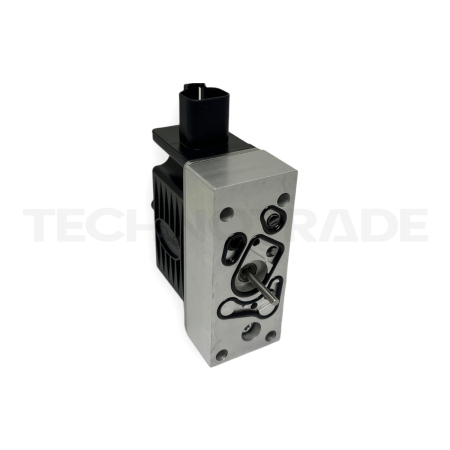

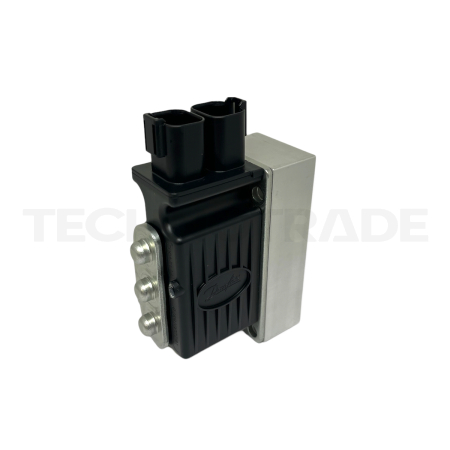

Electrohydraulic PVE actuator for precise control of Danfoss PVG 16 valves.
In stock Shipping next working day from our EU distribution hub European Union
179,14 € excl. VAT 216,76 € incl. VAT
pc
Need help?

Product description

Electrohydraulic PVE actuator for precise control of Danfoss PVG 16 valves.

MAIN FEATURES

  • Integrated software algorithm ensures reliable operation and strong performance of the actuator
  • Upgraded module design for increased durability in extreme conditions and corrosion resistance
  • Increased environmental robustness with ambient temperature rating of -40°C to +90°C
  • Increased diagnostic coverage with dual demodulator spool position monitoring principle
  • Improved EMC robustness with high frequency (HF) immunity field strength
  • Easy implementation and quick replacement for old actuator thanks to simplified modude design

Details

Input signal ON-OFF
Connector type Deutsch
Voltage 24 V
Function ON-OFF
PVG type PVG 16
PVE type PVEO16
Series Series 6
Hydraulic ramp No
DI (direction indicator) No
EX certified No
Float position No
Fault monitoring No
IP rating IP67
Related documents L1214235
Weight (brutto) 700 g
