PVM manual actuation for PVG 32 and PVG 100

Product ID 157B3194

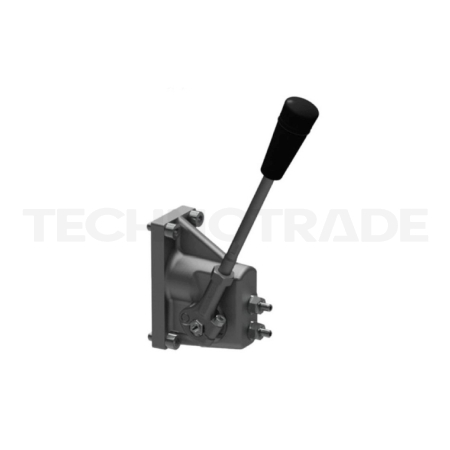

Image for illustration purposes only
PVM manual actuation for PVG 32 and PVG 100
PVM manual actuation designed for use on Danfoss PVG 32 and PVG 100 proportional valves.
Product details
On request Farthest delivery date: 7.6.2025
Price upon request excl. VAT
Inquire
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

PVM manual actuation designed for use on Danfoss PVG 32 and PVG 100 proportional valves.

Details

PVM type PVM
Material Aluminium
Anodized No
Spool adjustment screw No
Shaft for manual actuation Yes
Handle No
Base for handle Yes
Float functionality Yes
PVG type PVG 32, PVG 100
Related documents 520L0344
Weight (brutto) 400 g

Accessories

Seal kit for PVM/PVMD 32
18,49 €
In stock

Documents

PVM manual actuation for PVG 32 and PVG 100
pvg100-data-sheet.pdf
.pdf | 0.584 MB
PVM manual actuation for PVG 32 and PVG 100
pvg100-technical-information.pdf
.pdf | 8.892 MB
PVM manual actuation for PVG 32 and PVG 100
pvg32-technical-information.pdf
.pdf | 8.392 MB
