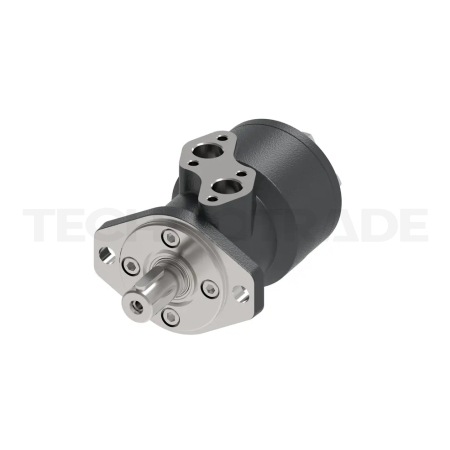

Orbital motor XLS 80
Product ID 036-0507-003
Image for illustration purposes only
- ID036-0507-003
- MMCMCS080AA07AA111000A000C00C
- Manufacturer Danfoss
- Shaft style Splined - 6B
- Displacement 80 cm³
- Shaft size Dia. 1 " - M8 tap
- Mounting flange 2 Bolt - A
High-quality Danfoss XLS orbital hydraulic motor (equivalent to the original OMR / OMR X series) suitable for use in both open and closed hydraulic circuits.
On request
Latest estimated delivery date: 19.11.2026
199,43 €
excl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
High-quality Danfoss XLS orbital hydraulic motor (equivalent to the original OMR / OMR X series) suitable for use in both open and closed hydraulic circuits.
Details
| Shaft style | Splined - 6B |
| Displacement | 80 cm³ |
| Shaft size | Dia. 1 " - M8 tap |
| Mounting flange | 2 Bolt - A |
| Basic motor | XLS |
| Series | Xcel |
| Mounting thread dimension | Pilot dia. 82,6 x 5 mm - B.C. dia. 106,4 mm - Dia. 13,5 mm |
| Port style | Side ported - offset |
| Port dimension | G 1/2 |
| Drain port dimension | G 1/4 |
| Shaft seal | NBR - Standard |
| Painted | Black |
| Weight (brutto) | 7400 g |
