Orbital motor XLS 50

Product ID 036-0524-003
Image for illustration purposes only

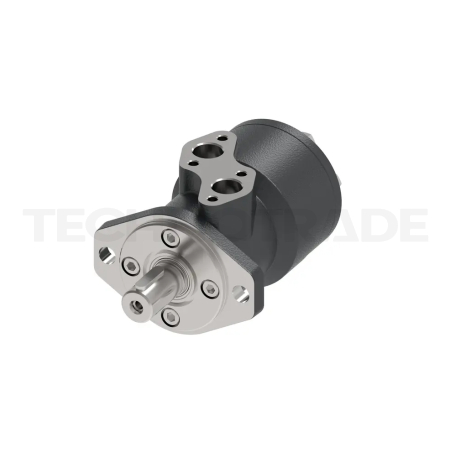

Orbital motor XLS 50
  • ID036-0524-003
  • MMCMCS050AA10AA111000A000C00C
  • Manufacturer Danfoss
  • Shaft style Straight
  • Displacement 50 cm³
  • Shaft size Dia. 25 mm - M8 tap
  • Mounting flange 2 Bolt - A
High-quality Danfoss XLS orbital hydraulic motor (equivalent to the original OMR / OMR X series) suitable for use in both open and closed hydraulic circuits.
Product details
On request Latest estimated delivery date: 4.1.2027
186,15 € excl. VAT
pc
Check delivery date

The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.

Need help?
Call us
+420 739 290 046
Chat with us
E-mail us

Product description

High-quality Danfoss XLS orbital hydraulic motor (equivalent to the original OMR / OMR X series) suitable for use in both open and closed hydraulic circuits.

Details

Shaft style Straight
Displacement 50 cm³
Shaft size Dia. 25 mm - M8 tap
Mounting flange 2 Bolt - A
Basic motor XLS
Series Xcel
Mounting thread dimension Pilot dia. 82,6 x 5 mm - B.C. dia. 106,4 mm - Dia. 13,5 mm
Port style Side ported - offset
Port dimension G 1/2
Drain port dimension G 1/4
Shaft seal NBR - Standard
Painted Black
Weight (brutto) 7000 g

Documents

Orbital motor XLS 50
xlh-xls-xl2-4-6-technical-information.pdf
.pdf | 15.81 MB
