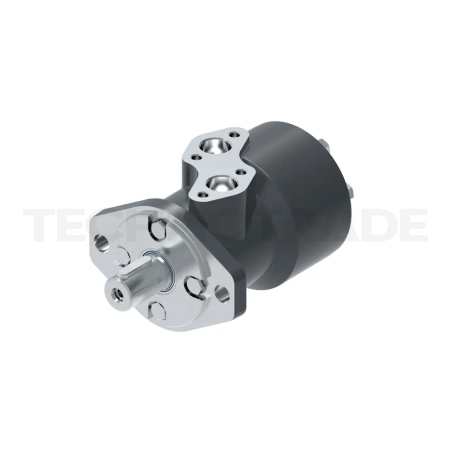

Orbital motor XLH 50
Product ID 016-0543-003
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- ID016-0543-003
- MMCMCH053AA10AA110020A000C00C
- Manufacturer Danfoss
- Displacement cm³
- Shaft style Straight
- Shaft size Dia. 25 mm - M8 tap
- Mounting flange 2 Bolt - A
High-quality Danfoss XLH orbital hydraulic motor (equivalent to the original OMP / OMP X series) suitable for use in both open and closed hydraulic circuits.
In stock
Shipping next working day from our EU distribution hub
Alternativy k produktu Orbital motor XLH 50
Orbital motor OMP X 50
Alternativní produkt, který lze použít jako náhradu za prohlížený produkt.
On request
0,00 €
0,00 € excl. VAT
123,75 €
excl. VAT
149,74 € incl. VAT
Danfoss
Need help?
Product description
High-quality Danfoss XLH orbital hydraulic motor (equivalent to the original OMP / OMP X series) suitable for use in both open and closed hydraulic circuits.
Details
| Displacement | cm³ |
| Shaft style | Straight |
| Shaft size | Dia. 25 mm - M8 tap |
| Mounting flange | 2 Bolt - A |
| Basic motor | XLH |
| Series | Xcel |
| Mounting thread dimension | Pilot dia. 82,6 x 5 mm - B.C. dia. 106,4 mm - Dia. 13,5 mm |
| Port style | Side ported - offset |
| Port dimension | G 1/2 |
| Drain port dimension | G 1/4 |
| Shaft seal | NBR - High pressure |
| Painted | Black |
| Weight (brutto) | 6520 g |
