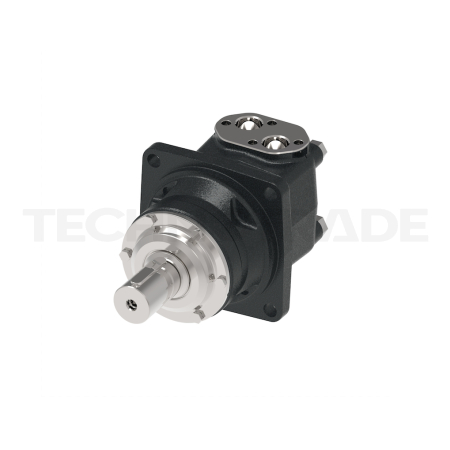

Orbital motor OMVW 400
Product ID 11215953
Image for illustration purposes only
- ID11215953
- Manufacturer Danfoss
- Displacement 400 cm³
- Mounting flange 4 Bolt - Wheel
- Mounting thread dimension Pilot dia. 180 x 10,6 mm / 194 x 3,4 mm - B.C. dia. 224 mm - Dia. 18 mm
- Shaft style Tapered - Cone 1:10
- Shaft size Dia. 60 mm - M42 x 3 tap
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
In stock
Shipping next working day from our EU distribution hub
1 518,16 €
excl. VAT
1 836,97 € incl. VAT
Danfoss
Need help?
Product description
Robust OMV orbital hydraulic motor manufactured by Danfoss for use in open loop or closed loop hydraulic system.
OMV orbital motors are known for their flexible use in many different applications. Their advantages include reliable operation and high efficiency under high pressure.
OMV MAIN FEATURES
- Displacement 315-800 cm³
- Max. continuous pressure 240 bar
- Max. continuous torque 1880 Nm
- Max. continuous flow 200 l/min
- Available with speed sensor
- Available with ATEX certificate
Details
| Basic motor | OMVW |
| Series | O-series |
| Displacement | 400 cm³ |
| Shaft style | Tapered - Cone 1:10 |
| Shaft size | Dia. 60 mm - M42 x 3 tap |
| Mounting thread dimension | Pilot dia. 180 x 10,6 mm / 194 x 3,4 mm - B.C. dia. 224 mm - Dia. 18 mm |
| Mounting flange | 4 Bolt - Wheel |
| Shaft key | B16 x 10 x 32 mm (DIN 6885) |
| Port style | Side ported - offset manifold (4 x M12) |
| Port dimension | G 1 |
| Drain port style | Standard - bearing housing |
| Drain port dimension | G 1/4 |
| Dust seal | Standard |
| Shaft seal | NBR - Standard |
| Seal kit product ID | 151B0129 |
| Front bearing | Tapered roller bearing |
| Rear bearing | Tapered roller bearing |
| Gear wheel set | Standard |
| Check valve | Yes |
| Special features external 1 | Valve housing - turned |
| Weight (brutto) | 35000 g |
