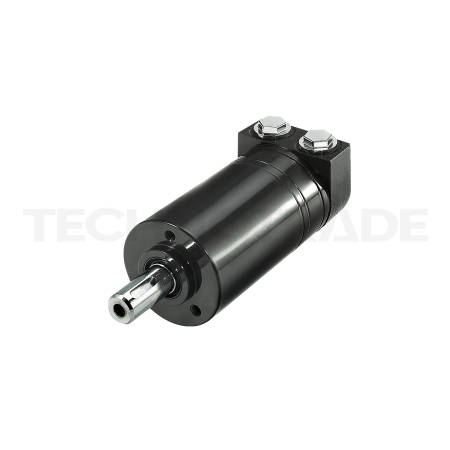

Orbital motor OMM 32 EM

Reliable OMM orbital hydraulic motor with speed sensor manufactured by White Drive Motors & Steering (former Danfoss and Sauer-Danfoss) for use in open loop or closed loop hydraulic system.

OMM orbital motors are an ideal solution for less demanding applications. These compact motors have a spool valve integrated with output shaft. They are designed for long periods of operation at moderate pressure and short periods of operation at high pressure.

OMM MAIN FEATURES

• Displacement 8-70 cm³
• Max. continuous pressure 100 bar
• Max. continuous torque 46 Nm
• Max. continuous flow 20 l/min
• Available rear ports and aligned side ports
• Available with 3-bolt and A2 mount options
