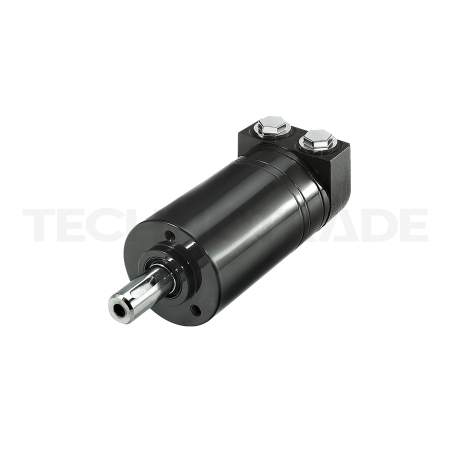

Orbital motor OMM 20 EM
Product ID 151G5047
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- ID151G5047
- Manufacturer White Drive Motors & Steering
- Displacement 20 cm³
- Mounting flange 3 Bolt - Round (3 x M6)
Reliable OMM orbital hydraulic motor with speed sensor manufactured by White Drive Motors & Steering (former Danfoss and Sauer-Danfoss) for use in open loop or closed loop hydraulic system.
On request
Latest estimated delivery date: 8.1.2027
Price upon request
excl. VAT
White Drive Motors & Steering
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
Reliable OMM orbital hydraulic motor with speed sensor manufactured by White Drive Motors & Steering (former Danfoss and Sauer-Danfoss) for use in open loop or closed loop hydraulic system.
OMM orbital motors are an ideal solution for less demanding applications. These compact motors have a spool valve integrated with output shaft. They are designed for long periods of operation at moderate pressure and short periods of operation at high pressure.
OMM MAIN FEATURES
- Displacement 8-70 cm³
- Max. continuous pressure 100 bar
- Max. continuous torque 46 Nm
- Max. continuous flow 20 l/min
- Available rear ports and aligned side ports
- Available with 3-bolt and A2 mount options
Details
| Displacement | 20 cm³ |
| Mounting flange | 3 Bolt - Round (3 x M6) |
| Basic motor | OMM |
| Series | O-series |
| Port style | Side ported - offset |
| Speed sensor | Yes |
| Port dimension | G 3/8 |
| Drain port style | Standard - end cover |
| Dust seal | Standard |
| Seal kit product ID | 151G0202 |
| Front bearing | Needle roller bearing |
| Rear bearing | Needle roller bearing |
| Gear wheel set | Standard |
| Check valve | Yes |
