Orbital motor OMM 20 EM
Product ID 151G5042

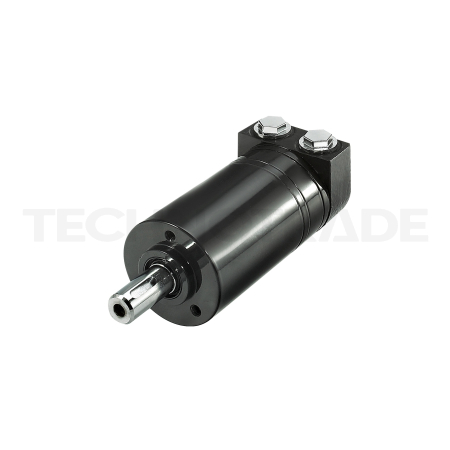

Image for illustration purposes only
- ID151G5042
- Manufacturer White Drive Motors & Steering
- Displacement 20 cm³
- Mounting flange 3 Bolt - Round (3 x M6)
Reliable OMM orbital hydraulic motor with speed sensor manufactured by White Drive Motors & Steering (former Danfoss and Sauer-Danfoss) for use in open loop or closed loop hydraulic system.
In stock
Shipping next working day from our EU distribution hub
Price upon request
excl. VAT
White Drive Motors & Steering
Need help?
Product description
Reliable OMM orbital hydraulic motor with speed sensor manufactured by White Drive Motors & Steering (former Danfoss and Sauer-Danfoss) for use in open loop or closed loop hydraulic system.
OMM orbital motors are an ideal solution for less demanding applications. These compact motors have a spool valve integrated with output shaft. They are designed for long periods of operation at moderate pressure and short periods of operation at high pressure.
OMM MAIN FEATURES
- Displacement 8-70 cm³
- Max. continuous pressure 100 bar
- Max. continuous torque 46 Nm
- Max. continuous flow 20 l/min
- Available rear ports and aligned side ports
- Available with 3-bolt and A2 mount options
Details
| Displacement | 20 cm³ |
| Mounting flange | 3 Bolt - Round (3 x M6) |
| Basic motor | OMM |
| Series | O-series |
| Port style | End ported - aligned |
| Speed sensor | Yes |
| Port dimension | G 3/8 |
| Drain port style | Standard - end cover |
| Dust seal | Standard |
| Seal kit product ID | 151G0202 |
| Front bearing | Needle roller bearing |
| Rear bearing | Needle roller bearing |
| Gear wheel set | Standard |
| Check valve | Yes |
