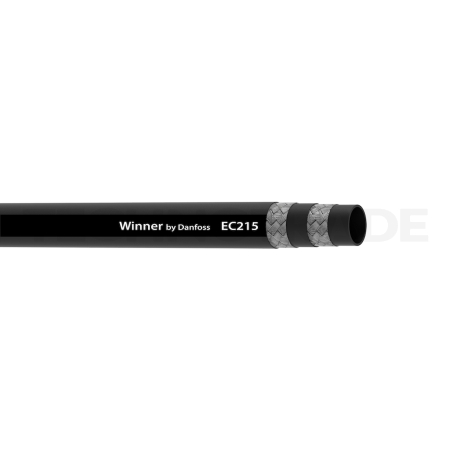

Hydraulic hose Winner EC215
Product ID EC215-04L
Image for illustration purposes only
- IDEC215-04L
- Manufacturer Danfoss
- Inner diameter 6,4 mm
- Outer diameter (max) 14,2 mm
- Maximum operating pressure 400 bar
- Minimum bend radius 50 mm
- Number of steel braids 2
High-quality two braided hydraulic hose Danfoss (formerly Eaton) Winner EC215 designed for use in different types of hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
4,92 €
excl. VAT
5,96 € incl. VAT
Danfoss
Need help?
Product description
High-quality two braided hydraulic hose Danfoss (formerly Eaton) Winner EC215 designed for use in different types of hydraulic systems. The price is per 1 meter of hose.
The Danfoss Winner hydraulic hose meet all industry standards for pressure, temperature and abrasion resistance, offering the right product at a competitive price point for OEM markets.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for wide range of applications
- Outstanding pressure, temperature and abrasion resistance
Details
| Inner diameter | 6,4 mm |
| Outer diameter (max) | 14,2 mm |
| Maximum operating pressure | 400 bar |
| Minimum bend radius | 50 mm |
| Number of steel braids | 2 |
| Operating temperature | -40°C to +100°C |
| Weight | 0,28 kg/m |
