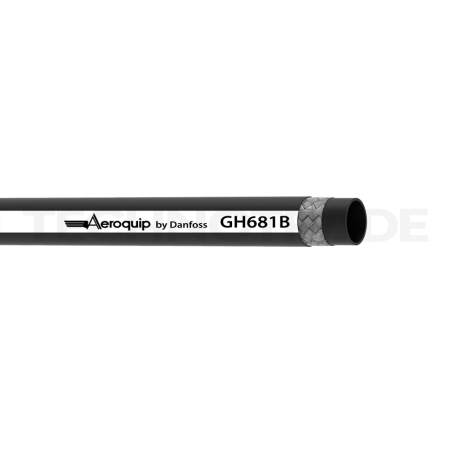

Hydraulic hose Aeroquip GH681
Product ID GH681-3MT50
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- IDGH681-3MT50
- Manufacturer Danfoss
- Inner diameter 4,8 mm
- Outer diameter (max) 11,5 mm
- Maximum operating pressure 250 bar
- Minimum bend radius 45 mm
- Number of steel braids 1
Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
On request
Latest estimated delivery date: 19.11.2026
5,42 €
excl. VAT
Danfoss
Check delivery date
The product delivery date can range from one week to several months. Please contact us to confirm delivery date for this specific product.
Need help?
Product description
Premium single wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH681 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Optionally with Bruiser cover for higher abrasion resistance
Details
| Inner diameter | 4,8 mm |
| Outer diameter (max) | 11,5 mm |
| Maximum operating pressure | 250 bar |
| Minimum bend radius | 45 mm |
| Number of steel braids | 1 |
| Operating temperature | -46°C to +127°C |
| Weight | 0,19 kg/m |
