• IDGH425-6
  • Manufacturer Danfoss
  • Maximum operating pressure 490 bar
  • Inner diameter 9,5 mm
  • Outer diameter (max) 20,9 mm
  • Number of steel braids 4
  • Minimum bend radius 180 mm

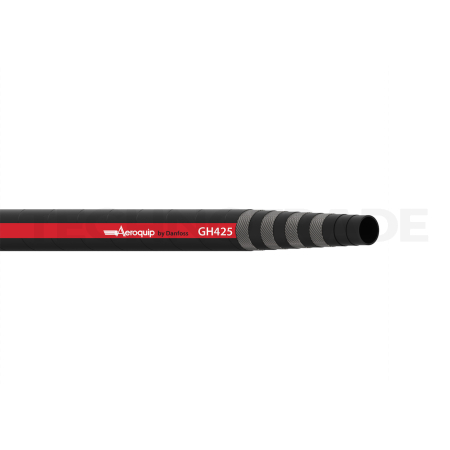

Premium four wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH425 designed for use in high pressure hydraulic systems. The price is per 1 meter of hose.
In stock Shipping next working day from our EU distribution hub European Union
19,85 € excl. VAT 24,02 € incl. VAT
m
Need help?

Product description

Premium four wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip GH425 designed for use in high pressure hydraulic systems. The price is per 1 meter of hose.

The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.

MAIN FEATURES

  • High-quality synthetic hydraulic hose
  • Designed for demanding operating conditions
  • High abrasion and temperature resistance
  • 1 million impulse cycle performance
  • Optionally with Bruiser cover for higher abrasion resistance

Details

Inner diameter 9,5 mm
Outer diameter (max) 20,9 mm
Maximum operating pressure 490 bar
Minimum bend radius 180 mm
Number of steel braids 4
Operating temperature -40°C to +100°C
Weight 0,7 kg/m
