Hydraulic hose Aeroquip Dynamax EC881 DN32
Product ID EC881-20MT46

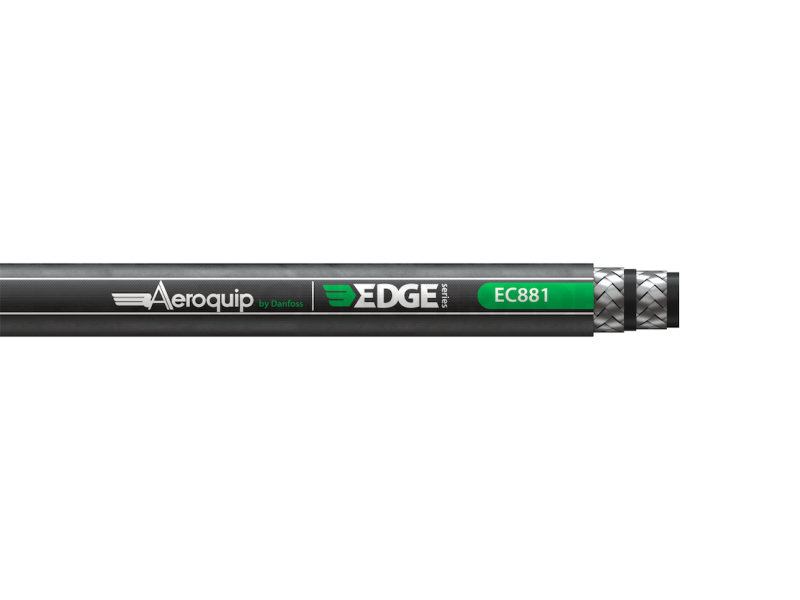

Image for illustration purposes only
- IDEC881-20MT46
- Manufacturer Danfoss
- Inner diameter 31,8 mm
- Outer diameter (max) 43,4 mm
- Maximum operating pressure 172 bar
- Minimum bend radius 210 mm
- Number of steel braids 2
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
In stock
Shipping next working day from our EU distribution hub
32,21 €
excl. VAT
38,97 € incl. VAT
Danfoss
Need help?
Product description
Premium two wire braided hydraulic hose Danfoss (formerly Eaton) Aeroquip Dynamax EC881 designed for use in low and medium pressure hydraulic systems. The price is per 1 meter of hose.
The Aeroquip hydraulic hose is suitable for demanding industrial applications and offer high abrasion resistance and operating temperatures.
MAIN FEATURES
- High-quality synthetic hydraulic hose
- Designed for demanding operating conditions
- High abrasion and temperature resistance
- 1 million impulse cycle performance
- Optionally with Bruiser cover for higher abrasion resistance
Details
| Inner diameter | 31,8 mm |
| Outer diameter (max) | 43,4 mm |
| Maximum operating pressure | 172 bar |
| Minimum bend radius | 210 mm |
| Number of steel braids | 2 |
| Operating temperature | -46°C to +127°C |
| Weight | 1,75 kg/m |
