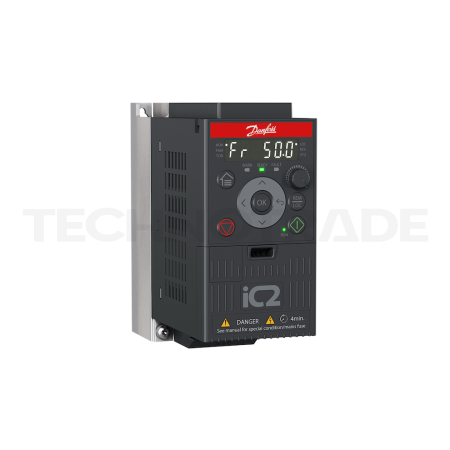

iC2-30 1~ 208–240 V AC 4.2 A, 0.75 kW with filter
Product ID 132L6111
Image for illustration purposes only
Fast and reliable worldwide shipping with DHL Express
Europe
1 working day
North & South America
2 working days
Africa
3 working days
Asia
3 working days
- ID132L6111
- MMCIC2-30FA1N02-04A2E20F0+ACXX
- Manufacturer Danfoss
- Nominal power 0,75 kW
- Supply voltage 208–240 V AC
- Nominal current 4,2 A
- Number of phases 1~
Danfoss iC2-Micro is a general-purpose drive that is suitable for a wide and varied range of industrial and HVAC applications. iC2-Micro performs with unmatched reliability even in complex applications. It offers user-friendliness, condensed functionality, and easy commissioning, all in a powerful compact package.
In stock
Shipping next working day from our EU distribution hub
234,19 €
excl. VAT
283,37 € incl. VAT
Danfoss
Old product versions
This product is no longer available. It has been replaced by a new version
, which is its fully adequate replacement with identical parameters. Therefore, it is possible to replace the original product with the new one.
Need help?
Product description
Danfoss iC2-Micro is a general-purpose drive that is suitable for a wide and varied range of industrial and HVAC applications. iC2-Micro performs with unmatched reliability even in complex applications. It offers user-friendliness, condensed functionality, and easy commissioning, all in a powerful compact package.
MAIN FEATURES
- Fast and accurate installation with spring type I/O terminals for minimal external wiring.
- Fast commissioning thanks to application wizards and online/offline PC configuration tool.
- High reliability.
- Cost-effective and space-efficient investment with less wiring, side-by-side mounting and compact footprint.
- Compatible with all typical motor technologies.
- Supported by the powerful MyDrive® Suite digital tools.
- Optional external control panel provides extra features to ease commissioning, such as parameter copy and download.
Details
| Nominal power | 0,75 kW |
| Supply voltage | 208–240 V AC |
| Nominal current | 4,2 A |
| Number of phases | 1~ |
| Model series | iC2-Micro |
| Brake chopper | No |
| Digital inputs | 5 |
| Digital outputs | 1 |
| Analog inputs | 2 |
| Analog outputs | 1 |
| Relay outputs | 1 |
| EMC filter | C1 |
| Enclosure size | MA01c |
| Dimensions | 150mm x 70mm x 143mm |
| IP rating | IP20 |
| Weight (brutto) | 985 g |
