FC51 3~380–480 V AC 7.2 A, 3.0 kW

Name: FC51 3~380–480 V AC 7.2 A, 3.0 kW
Brand: Danfoss
SKU: 132F0024
Availability: OutOfStock

Product ID 132F0024

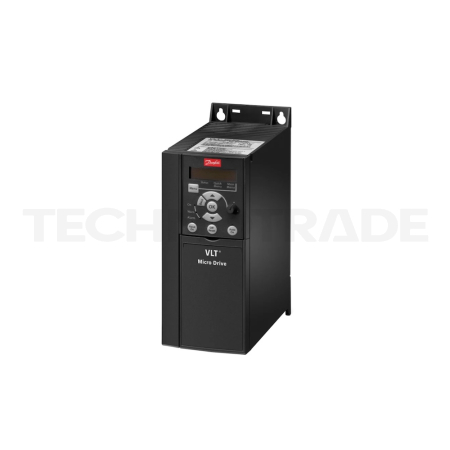

Image for illustration purposes only

Replaced by

ID132F0024
MMCFC-051P3K0T4E20H3BXCXXXSXXX
Manufacturer Danfoss
Nominal power 3 kW
Nominal current 7,2 A
Supply voltage 380-480 V AC
Number of phases 3~
Nahrazeno produktem 132L6132

Product discontinued – replacement available

Replacement for FC51 3~380–480 V AC 7.2 A, 3.0 kW

iC2-30 3~ 380–480 V AC 7.2 A, 3 kW with filter Product ID: 132L6132

On request

532,75 € excl. VAT

This product is a fully adequate replacement of the discontinued product. It has identical parameters, which means that these products are interchangeable.

Need help?

Call us

+420 739 290 046

Chat with us

E-mail us

Product description

A compact, robust drive designed for controlling AC motors in a wide range of applications, featuring a cost-effective design (allows side-by-side mounting), high reliability even in harsh conditions (thanks to painted PCBs) and easy installation.

It offers powerful control, built-in RFI filters and intelligent cooling to reduce consumption and extend service life.

This product is no longer manufactured and has been replaced by a model from the newer iC2-Micro series. Please select a related product that is a full replacement for this drive.

Details

Nominal power	3 kW
Nominal current	7,2 A
Supply voltage	380-480 V AC
Number of phases	3~
Model series	VLT® Micro Drive FC 51
Brake chopper	Yes
Digital inputs	5
Digital outputs	1
Analog inputs	2
Analog outputs	1
Relay outputs	1
EMC filter	A1/B red. cable length
Enclosure size	M3
Dimensions	239mm x 90mm x 194mm
IP rating	IP20
