FC51 3~380–480 V AC 5.3 A, 2.2 kW

Name: FC51 3~380–480 V AC 5.3 A, 2.2 kW
Brand: Danfoss
SKU: 132F0022
Availability: OutOfStock

Product ID 132F0022

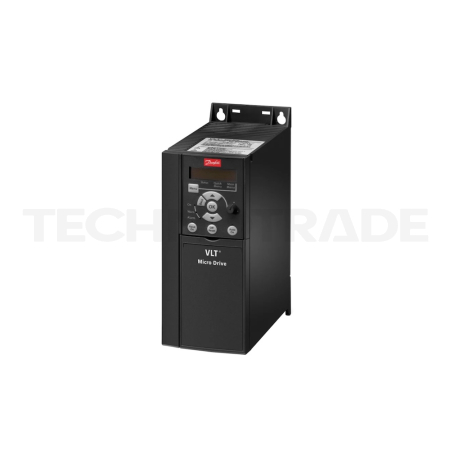

Image for illustration purposes only

Replaced by

ID132F0022
MMCFC-051P2K2T4E20H3BXCXXXSXXX
Manufacturer Danfoss
Nominal power 2,2 kW
Nominal current 5,3 A
Supply voltage 380-480 V AC
Number of phases 3~
Nahrazeno produktem 132L6131

Product discontinued – replacement available

Replacement for FC51 3~380–480 V AC 5.3 A, 2.2 kW

iC2-30 3~ 380–480 V AC 5.3 A, 2.2 kW with filter Product ID: 132L6131

In stock

462,22 € excl. VAT

This product is a fully adequate replacement of the discontinued product. It has identical parameters, which means that these products are interchangeable.

Need help?

Call us

+420 739 290 046

Chat with us

E-mail us

Product description

A compact, robust drive designed for controlling AC motors in a wide range of applications, featuring a cost-effective design (allows side-by-side mounting), high reliability even in harsh conditions (thanks to painted PCBs) and easy installation.

It offers powerful control, built-in RFI filters and intelligent cooling to reduce consumption and extend service life.

This product is no longer manufactured and has been replaced by a model from the newer iC2-Micro series. Please select a related product that is a full replacement for this drive.

Details

Nominal power	2,2 kW
Nominal current	5,3 A
Supply voltage	380-480 V AC
Number of phases	3~
Model series	VLT® Micro Drive FC 51
Brake chopper	Yes
Digital inputs	5
Digital outputs	1
Analog inputs	2
Analog outputs	1
Relay outputs	1
EMC filter	A1/B red. cable length
Enclosure size	M2
Dimensions	176mm x 75mm x 168mm
IP rating	IP20
