FC51 3~380–480 V AC 23.0 A, 11.0 kW

Name: FC51 3~380–480 V AC 23.0 A, 11.0 kW
Brand: Danfoss
SKU: 132F0058
Availability: OutOfStock

Product ID 132F0058

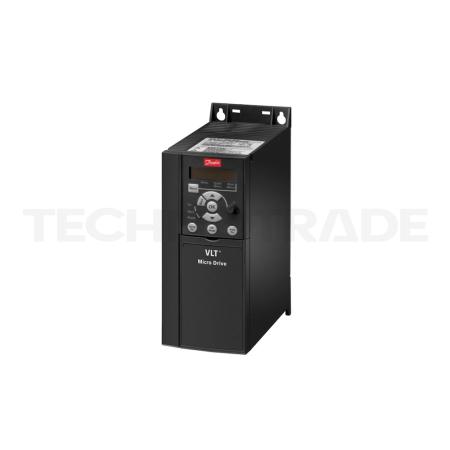

Image for illustration purposes only

Replaced by

ID132F0058
MMCFC-051P11KT4E20H3BXCXXXSXXX
Manufacturer Danfoss
Nominal power 11 kW
Nominal current 23 A
Supply voltage 380-480 V AC
Number of phases 3~
Nahrazeno produktem 132L6136

Product discontinued – replacement available

Replacement for FC51 3~380–480 V AC 23.0 A, 11.0 kW

iC2-30 3~ 380–480 V AC 23 A, 11 kW with filter Product ID: 132L6136

In stock

1 085,37 € excl. VAT

This product is a fully adequate replacement of the discontinued product. It has identical parameters, which means that these products are interchangeable.

Need help?

Call us

+420 739 290 046

Chat with us

E-mail us

Product description

A compact, robust drive designed for controlling AC motors in a wide range of applications, featuring a cost-effective design (allows side-by-side mounting), high reliability even in harsh conditions (thanks to painted PCBs) and easy installation.

It offers powerful control, built-in RFI filters and intelligent cooling to reduce consumption and extend service life.

This product is no longer manufactured and has been replaced by a model from the newer iC2-Micro series. Please select a related product that is a full replacement for this drive.

Details

Nominal power	11 kW
Nominal current	23 A
Supply voltage	380-480 V AC
Number of phases	3~
Model series	VLT® Micro Drive FC 51
Brake chopper	Yes
Digital inputs	5
Digital outputs	1
Analog inputs	2
Analog outputs	1
Relay outputs	1
EMC filter	A1/B red. cable length
Enclosure size	M4
Dimensions	292mm x 125mm x 241mm
IP rating	IP20
